SKU: 14320347025

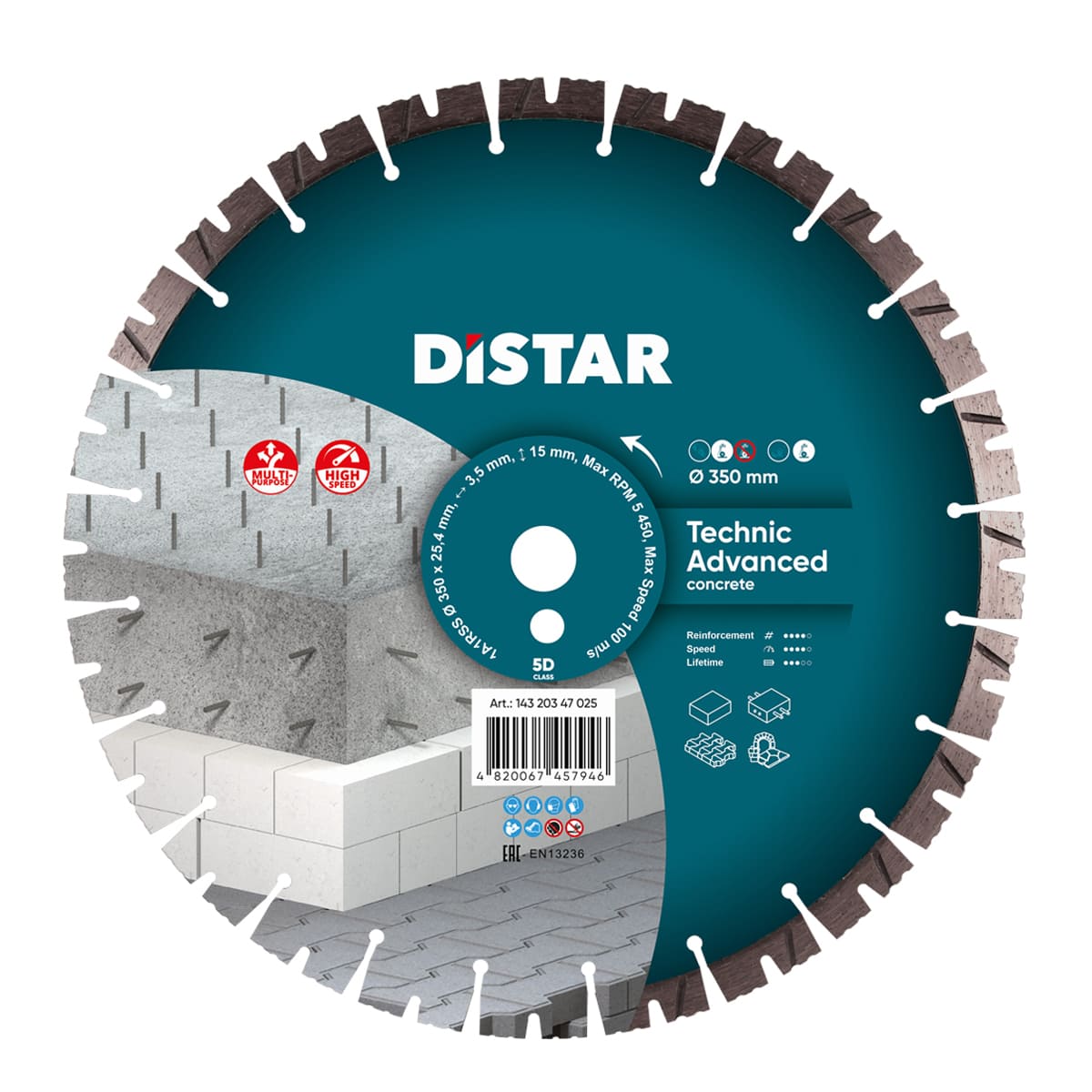

Diamond cutting blade 1A1RSS 350 Technic Advanced
Speed
Lifetime
Cutting of reinforcement
Granite
Reinforced concrete
Paving slabs
Diameter: 350 mm
Mounting hole: 25.4 mm
To check price and availability, contact representative
in your region
Return of goods
Claims are considered in the case of:
- Manufacturer’s recommendations for the tool operation have not been violated
- The wear of the diamond layer shall not exceed 1/3 of its initial height
- You can return the goods within 14 days from the date of purchase, if the original packaging is intact and there are no traces of use.
Characteristics
Diameter
Thickness
Cooling
Bore diameter
Purpose
Brand
Description
Diamond cutting blade Distar 1A1RSS C3 Technic Advanced is a novelty on the market and is used on floor saws and gasoline power cutters for cutting concrete with weak and medium reinforcement. Due to the unique diamond layer of the segment, a height of 15 millimeters provides a maximum soft and even cut. In addition, it provides high speed, which reaches 2.5 meters per minute with a lifetime of 300 meters.
Due to the presence of special segments, the effective removal of sludge from the working area is ensured.
Available in diameter from 300 to 400 millimeters for use with equipment with power of up to 9 kilowatts. Also in the assortment there are alternative blades of this series for angle grinder with a diameter of 115, 125 and 230 mm.
The cutting can be carried out both with additional water cooling, and without it.
Due to the presence of special segments, the effective removal of sludge from the working area is ensured.
Available in diameter from 300 to 400 millimeters for use with equipment with power of up to 9 kilowatts. Also in the assortment there are alternative blades of this series for angle grinder with a diameter of 115, 125 and 230 mm.
The cutting can be carried out both with additional water cooling, and without it.
Positioning of diamond cutting blades for cutting concrete with floor saws
Performance parameters are given for following conditions:
• cutting the material indicated on the charts;
• cutting with 350 mm blade diameter;
• cutting depth – 110 mm;
• straight cutting;
• work with operational floor saw with power of 9.6 kW and rotation speed 2500 rpm;
• at an air temperature of +25 °C.
The data is for information only. Under different conditions performance parameters may vary.
Material:
concrete B20 (M250),
reinforcement Ø16 mm,
7 pcs/1 m
