Diamond drilling without water: everything about dry drilling and core bits

Dry drilling is rapidly gaining popularity among professionals and private contractors working with hard building materials. This processing method is distinguished by the fact that it does not require supplying water to cool the diamond core bit, which significantly simplifies the organization of the work process and increases its cleanliness.

The main advantage of dry drilling is the absence of slurry, which with the traditional wet method often soils the surroundings, and in conditions of already completed finishing work can lead to interior damage. In residential premises, offices, or commercial buildings where renovation has already been completed, this is particularly critical. Moisture entering wallpaper, drywall, laminate, or electrical installation can cause costly consequences.

In addition, the dry method allows quick commencement of work without the need to organize water supply, tanks for collecting dirty liquid, and subsequent cleaning. This is especially relevant in apartments, where access to installations is sometimes limited, and the process itself must be as careful and fast as possible.

Thus, dry drilling is not only a convenient alternative but a full-fledged technological approach aimed at high precision, cleanliness, and minimal risk when working in delicate conditions.

For dry drilling, not every diamond core bit can be used — special models designed for operation without water cooling are required. Such drills have a special segment that ensures effective drilling even at high temperatures.

Dry drilling equipment

Unlike wet drilling, where stationary sets on stands are more often used, dry drilling is almost always performed manually. Due to the high dust formation in this method, dust extractors or specialized dust collection systems are mandatory.

Here are the basic types of tools used in dry drilling:

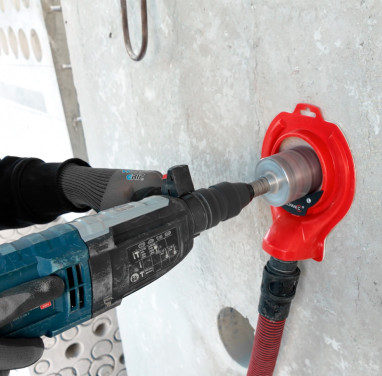

1. Rotary hammer

• Pros: affordable price, compatibility with SDS adapter.
• Cons: low power and speed, poor efficiency in hard and reinforced materials.
• Application: ideally performs shallow holes in brick, aerated concrete blocks, cellular concrete. Work exclusively in non-impact mode!

2. Impact drill

• Pros: higher speed than rotary hammer, compactness, versatility.
• Cons: limited drilling depth and diameter.
• Application: household drilling, installation of sockets and wiring.

3. Handheld diamond drill

• Pros: high power, speed adjustment, possibility of reinforced concrete drilling.
• Cons: high price, weight, and size.
• Features: 1 1/4 UNC or M16–M18 thread, possibility of using extensions and dust extraction.

4. Diamond drill with micro-impact

• Pros: maximum efficiency. In M400 class concrete and higher, it makes a socket hole in about 1 minute.
• Cons: the highest price among equivalents.
• Features: intended for professional use; used with bits adapted for micro-impact mode.

Important: cheap power tools clearly lose in speed and efficiency, especially when working with dense or reinforced materials.

Tasks solved by the dry drilling method

The range of applications depends on the selected tool and type of core bit. Here are typical tasks performed with the dry drilling method:

• Socket installation — core diameters 68, 72, 82 mm, depth 60–70 mm. Used in electrical work in brick and concrete walls for installing flush-mounted boxes, distribution boxes, switches.
• Gas pipeline installation — diameter 32–42 mm, depth up to 500 mm and more. Used for drilling through or blind channels for metal and plastic gas pipes in walls, ceilings, and foundations.
• Air conditioner installation — holes 52–62 mm, depth according to wall thickness. Necessary for routing refrigerant and drain pipes. Particularly important when installing split systems in already finished rooms.
• Ventilation and exhaust systems — holes 102–132 mm, depth from 200 mm upwards. Used for installing kitchen hoods, ventilation grilles, air ducts, and supply and exhaust systems. Often performed in load-bearing external walls.
• Heat recovery unit installation — diameter from 82 to 132 mm. Depending on the device model, the hole is made in the external wall of the building and must run strictly along the axis for proper mounting of the duct and housing.
• Heating and water pipe routing — diameter 32–76 mm. Used for pipe outlets through walls and ceilings as well as vertical riser distribution.
• Cable ducts and trays installation — diameter up to 50 mm. Technological holes are made for routing low-voltage and power cables, especially in concrete walls and partitions.
• Anchoring and fastening systems installation — diameter 25–45 mm. Used for precise and clean drilling of locations for fastening engineering devices, advertising structures, and facade elements.

Dry drilling is particularly convenient in already finished premises where the use of water is unacceptable. However, it can also be used at unfinished construction sites in situations where water supply is difficult or impossible.

Diamond core bits: what to know

Diamond core bits for dry drilling differ in composition from those used in the wet method. They cannot be used interchangeably.

Types of core bits by application:

1. For rotary hammers and drills

• Diameters: 68–82 mm.
• Depth: usually up to 70 mm, less often up to 300 mm.
• Suitable for: brick, cinder blocks, concrete, etc.
• Durability: up to 300 holes in brick, 40–60 in concrete.

2. For handheld diamond drills

• Compatible with most bits from drills and rotary hammers.
• Diameters: 42–112 mm.
• Depth: up to 400 mm (with extensions, holes over 1 m can be made).
• Suitable for dense and reinforced concrete.

3. For diamond drills with micro-impact

• Diameters: 42–162 mm.
• Depth: up to 400 mm (with extensions, holes over 1 m can be made).
• Require specially designed bits. Use of regular ones may drastically shorten durability.

What is micro-impact drilling?

Micro-impact in diamond drilling is an innovative technology in which light, high-frequency, low-amplitude impulses are added to the basic rotation of the core bit. Unlike the classic impact mode, as in a rotary hammer, there is no destructive blow to the material — the force of impact is minimal, but thanks to the high frequency (thousands of micropulses per minute), drilling efficiency is significantly increased, especially in hard and reinforced concrete.

Main features of micro-impact:

• Speeds up the drilling process: hole-making time is reduced 3–5 times compared to conventional dry drilling.
• Reduces tool load: thanks to partial vibration, the material crumbles more easily, the core bit does not jam.
• Increases bit durability: since the load reduction reduces overheating and segment wear.
• Operates without water: drilling is performed dry while maintaining high efficiency.

To work in micro-impact mode, special diamond drills and compatible bits capable of withstanding impulse loads are required. Using unsuitable bits may lead to accelerated wear or destruction.

The technology is particularly useful when drilling in high-grade concrete (M400 and above), as well as in cases where speed and cleanliness of work are key — for example, in residential and office premises.

Conclusions

Dry drilling is a modern solution for clean and fast work. It eliminates the need for massive stands and allows work in rooms without dirt and moisture. High-power, high-speed diamond drills significantly increase drilling efficiency, especially when properly selected bits are used.

Saving on tools is not always reasonable: high-quality equipment pays off thanks to speed, convenience, and durability of consumables.
