SKU: 12385055025

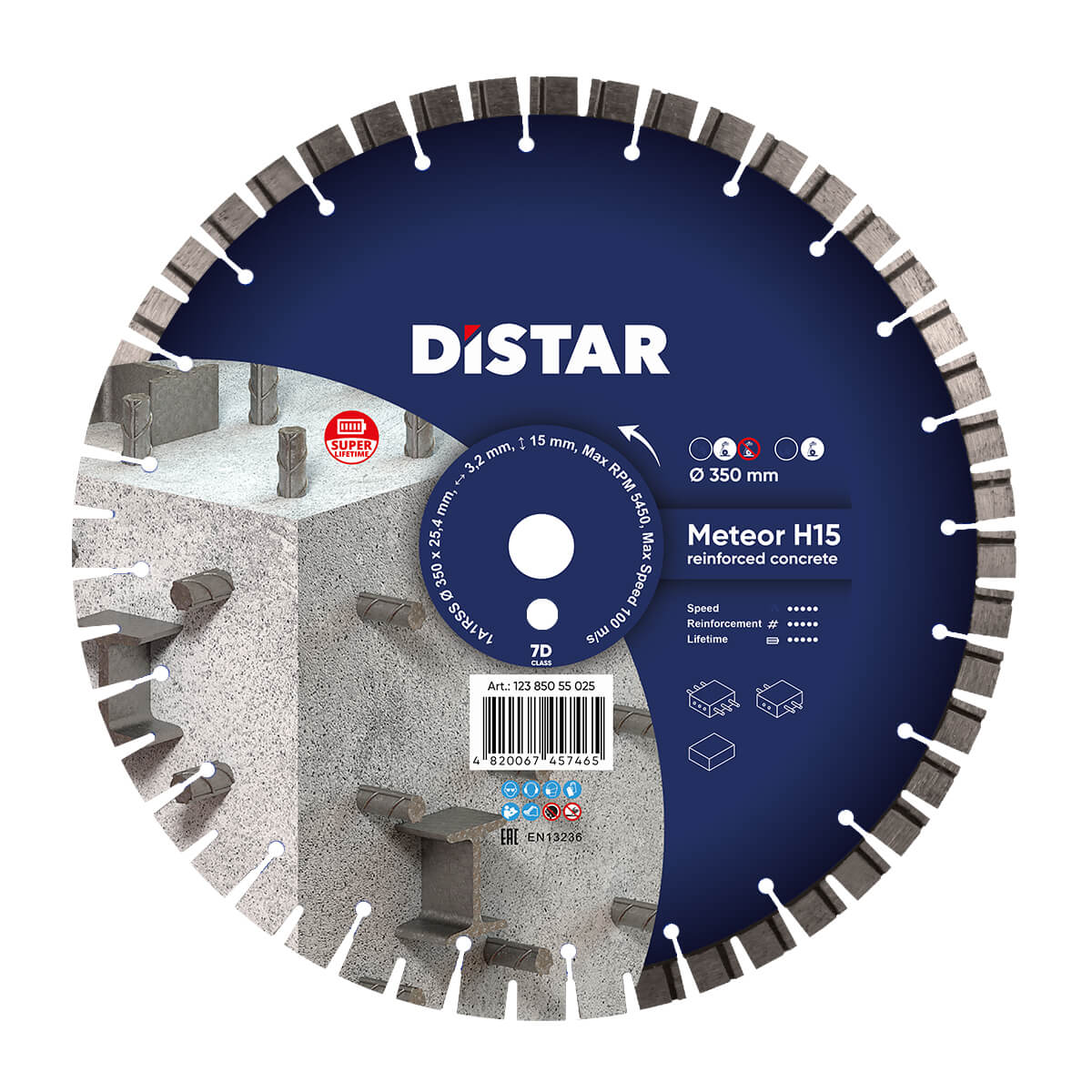

Diamond cutting blade 1A1RSS 350 Meteor H15
Speed
Lifetime
Cutting of reinforcement
Highly reinforced concrete
Diameter: 350 mm
Mounting hole: F4 mm
To check price and availability, contact representative
in your region
Return of goods
Claims are considered in the case of:
- Manufacturer’s recommendations for the tool operation have not been violated
- The wear of the diamond layer shall not exceed 1/3 of its initial height
- You can return the goods within 14 days from the date of purchase, if the original packaging is intact and there are no traces of use.
Characteristics
Diameter
Thickness
Cooling
Bore diameter
Purpose
Brand
Description
Diamond cutting blade Distar 1A1RSS C3W Meteor is used for cutting medium and high-grade reinforced concrete.
Shows a high speed and long lifetime while working even with heavy, highly reinforced concrete. In particular, when working with the power cutter, the speed reaches up to 2 meters per minute, with a lifetime up to 600 running meters. With floor saws, the lifetime reaches 700 meters at a speed up to 2.75 linear meters/min.
Available in several diameters from 300 to 500 millimeters. It is used in combination with floor saws and gasoline power cutters of medium power (from 5 to 13 kW).
Shows a high speed and long lifetime while working even with heavy, highly reinforced concrete. In particular, when working with the power cutter, the speed reaches up to 2 meters per minute, with a lifetime up to 600 running meters. With floor saws, the lifetime reaches 700 meters at a speed up to 2.75 linear meters/min.
Available in several diameters from 300 to 500 millimeters. It is used in combination with floor saws and gasoline power cutters of medium power (from 5 to 13 kW).
Positioning of diamond cutting blades for cutting concrete with floor saws
Performance parameters are given for following conditions:
• cutting the material indicated on the charts;
• cutting with 350 mm blade diameter;
• cutting depth – 110 mm;
• straight cutting;
• work with operational floor saw with power of 9.6 kW and rotation speed 2500 rpm;
• at an air temperature of +25 °C.
The data is for information only. Under different conditions performance parameters may vary.
Material:
concrete B20 (M250),
reinforcement Ø16 mm,
7 pcs/1 m
